Wall angle roll forming machine for thickness to 3.5mm

  • Wall angle roll forming machine for thickness to 3.5mm
  • Wall angle roll forming machine for thickness to 3.5mm
  • Wall angle roll forming machine for thickness to 3.5mm
  • Wall angle roll forming machine for thickness to 3.5mm

Wall angle roll forming machine for thickness to 3.5mm

    Payment Type: L/C,T/T,D/P,Western Union,O/A
    Terms of Trade: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: 20ft container
    Productivity: 25m/min
    Brand: Zhongtuo
    Transportation: Ocean,Land,Air
    Place of Origin: China(mainland)
    Supply Ability: 5 sets per month.
    Certificate: CE/ISO9001
    HS Code: 8455221000

Basic Info

Model No.: CNZT002

Product Description

Wall angle roll forming machine for thickness to 3.5mm

Wall angle and L shape roll forming machine is same like other roll forming machines, it can make the wall angle beads in batch. Noramlly speaking, we only use Max 0.8 for ceiling or drywall. But sometime for house frame or others, we need to make more thicker wall angle like up to 3.5mm.

When come to this, the following machine will be helpful for you. Here I show some examples for your reference:

wall angle rolling machine

All those drawing profiles could be made by one machine. And if you need more within some range, all could be done by one machine, just you need to adjust the input coil width.

wall angle machine04

For the wall angle machine and L shape rolling forming machine, here are some parameters for your reference:

Note: from drawing profile 11 to 12, we will use one type of roller which is something like spacer but much bigger than spacer, to adjust the sizes.

For the drawing profile 13 to 14, you do not need to adjust anything, just put the coil at the center of the input coil leveling beach that is enough.So all above drawing profiles could be made by one machine.

Main elements of the machine roll forming machine

Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way. Passive uncoil pulled by roll forming system
Loading capacity: 1.5TUncoiling width: 300mm

Inner diameter: 450-550mm

Feeding and leveling

This part will level coil to make sure it is neat clean and straight. Meanwhile the roller will punch dots at both side of the C channel.

Main Machine

Size: 4300х800х1400Weight t: 2.8 tons

Voltage:380V/50HZ3Phase(as customer`s request)

Roller fixer : Guide columnFrame : middle plate welded

Memorial arch frame typeFrame thickness:25mm

Drive mode: gearMaterial of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ50mm Number of rollers :9 rollers

Main power: 5.5kw Cycloidal planetary gear speed reducer

Punching hole and punching logo

This part will help you press your company logo on the finished products.

Power: hydraulic

Shearing machine

Material of blades: Gcr12 quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

We will give 9 pieces of cutting balde for you to change to fix those different drawing profiles.

Hydraulic Station

Hydraulic motor Power: 4kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And three sets: one is for punching hole; one is for printing words and one for cutting. Sets of electromagnetism valves.

Electric Control System

Feature:

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

Runout table

It adopts welded steel and supported roller to transmit the products.

wall angle machine11

wall angle machine27

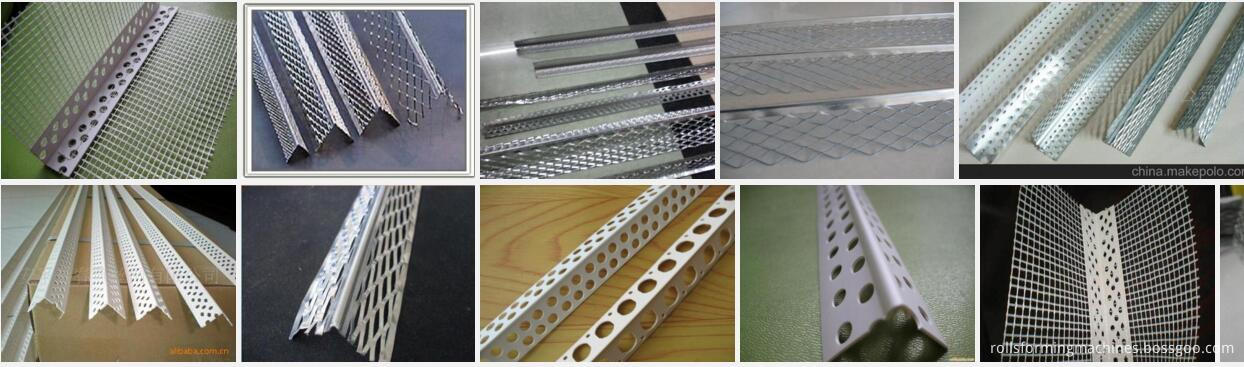

For the wall angle or L shape, if you want to make with punching holes, you just need to add one more punching machine and one more servo coil feeder. The following are some pictures for your reference.

angle bead 40





Cangzhou ZHONGTUO roll forming machinery is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines. The company cooperates with several production factories and associated enterprises.

Engineers and technicians are rich in experience of designing, developing, and manufacturing of machines. We pay close attention to new trend of technologies. All products comply with international quality standards and are greatly appreciated in markets throughout the world.



roll forming machine company

china roll forming machine manufacturer company
