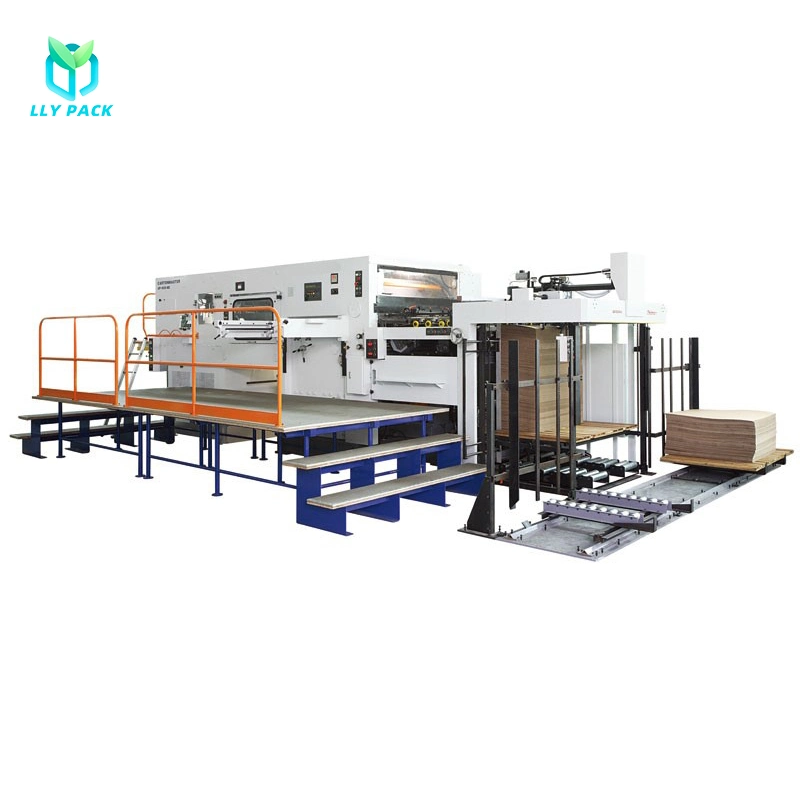

Flatbed Die Cutting Machine for Packaging Box Carton
| Unit Price: | 160000~190000 USD |
|---|---|
| Min. Order: | 1 Piece/Pieces |
| Packaging: | Case |
|---|---|
| Brand: | LLY PACK |
| Transportation: | Ocean,Land,Air,Express |
| Place of Origin: | China |
| Supply Ability: | 150 Set/Sets Per Year |
| Port: | Foshan,Shenzhen,Guangzhou |
Basic Info
Model No.: Die Cutting Machine
Product Description
High Speed Flatbed Die cutting machine for Packaging Box Carton-Other Machinery & Industry Equipment)
Features in Performance
√ Exclusively for laminated board and corrugated board with the newest servo-drive feeding system.
√ Accurate die-cutting from E flute to AB flute.
√ Completed stripping is by stripping system and grip edge waste removal device.
√ Excellent adaptability for small and big production.
√ Reliable safety performance and dual safety security device designed. (Air brake and power-off shutdown devices.)
√ All operation is on the exterior of the machine.
√ High Productivity, Precise Die-cutting, Precise Creasing, Smooth Stripping and Convenient Operation.
√ Accurate die-cutting from E flute to AB flute.
√ Completed stripping is by stripping system and grip edge waste removal device.
√ Excellent adaptability for small and big production.
√ Reliable safety performance and dual safety security device designed. (Air brake and power-off shutdown devices.)
√ All operation is on the exterior of the machine.
√ High Productivity, Precise Die-cutting, Precise Creasing, Smooth Stripping and Convenient Operation.
| Model | AP-165E-II |
| Paper size | 1200X1650mm |
| Minimum paper size | 500X600mm |
| Maximum die cutting size | 1180X1630mm |
| Standard bite | 15(±5)mm |
| Maximum die cutting speed | 350tons |
| Corrugated paper thickness | 1-9mm |
| Maximum die cutting speed | 5000i.p.h |
| Total power consumption | 36KW(Main Motor22KW) |
| Total Weigh | 38tons |

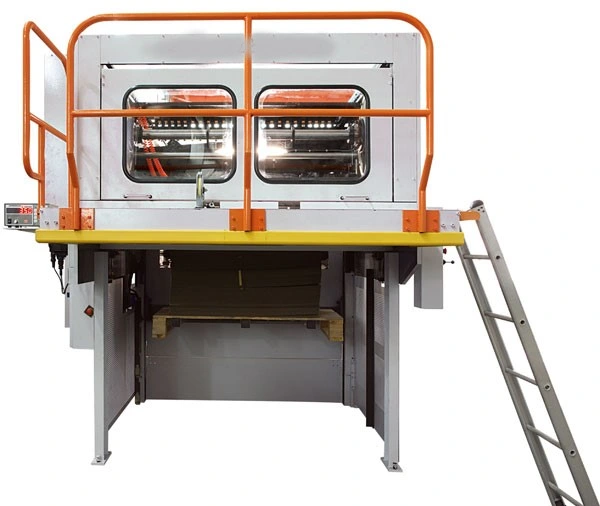

Feeding Section
1,The newest servo-drive and vacuum suction belt feeding system 2,Suitable for all kinds of paper, and data setting can be adjusted on the touch screen.
3,Big size front and side baffles make cardboard at right position, providing high die-cutting precision.
4,Paper leveling device is specially designed for bent cardboard, stopping cardboard cover the front baffle
3,Big size front and side baffles make cardboard at right position, providing high die-cutting precision.
4,Paper leveling device is specially designed for bent cardboard, stopping cardboard cover the front baffle
Press Section
1,Steady die-cutting performance & Strong and reliable high speed driven
2, Die-cutting frame locking structure, the die-cutting steel plate is used air reducer to reduce the weight, easy control.
3, Die-cutting positioning device can reach quick locating and higher accuracy of die-cutting.
4, ASAHI spike gripper is specially designed for the heavy warping board, stable and durable
2, Die-cutting frame locking structure, the die-cutting steel plate is used air reducer to reduce the weight, easy control.
3, Die-cutting positioning device can reach quick locating and higher accuracy of die-cutting.
4, ASAHI spike gripper is specially designed for the heavy warping board, stable and durable

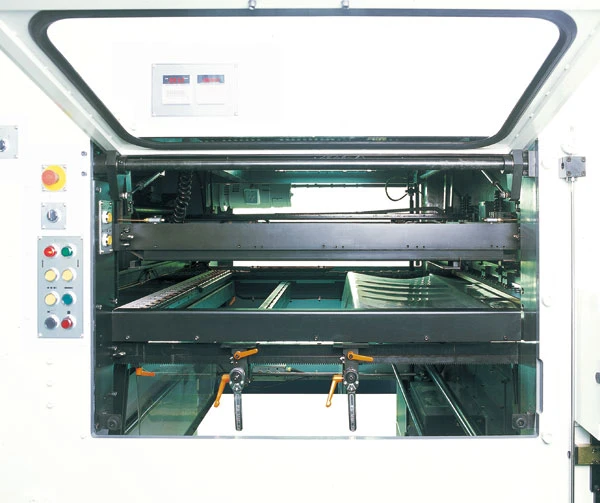

Stripping Section
1, The quick-setting way of die is adopted; operator can finish the setting from exterior without entering the machine.
2,Male and female die can be inserted into the machine from operation side to shorten the setup time and for higher safety.
3, Upper and lower frames make the dies succeed in performance. Male and female dies can move up-an-down,making stripping more completely.
4, A plastic film is set between die-cutting section and lower frame for stopping paper swerve. It can be adjusted by moving hand
crank according to the size on the dies operation direction..
2,Male and female die can be inserted into the machine from operation side to shorten the setup time and for higher safety.
3, Upper and lower frames make the dies succeed in performance. Male and female dies can move up-an-down,making stripping more completely.
4, A plastic film is set between die-cutting section and lower frame for stopping paper swerve. It can be adjusted by moving hand
crank according to the size on the dies operation direction..

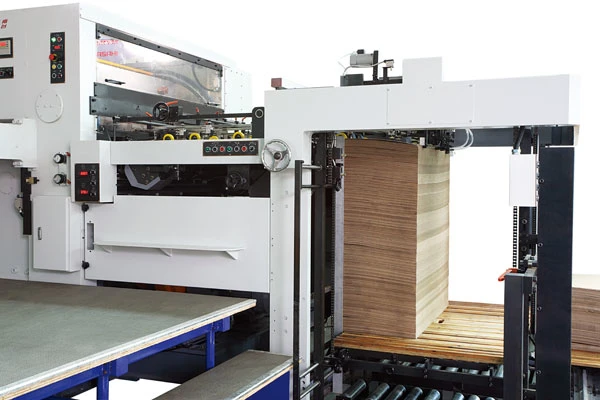

Carton Die Cutting Machine Delively Section
1, Front and back barriers with side aligning device make receiving tidy.
2, Side baffle and back barrier coordinate and can be adjusted by motor based on the size on productiion direction.
3, Delivery platfrom is driven by motor, easy for setting.
4, Temporary receriving device controlled by servo-actuator makes delivery more simple and easy.
2, Side baffle and back barrier coordinate and can be adjusted by motor based on the size on productiion direction.
3, Delivery platfrom is driven by motor, easy for setting.
4, Temporary receriving device controlled by servo-actuator makes delivery more simple and easy.
Multiple successful installations
1. Q: Are you a manufacturer, trading company or a third party?
We are a manufacturer, located in National High-tech Industrial Zone, Sanshui, Foshan City, Guangdong Province, China. Warmly welcome to visit our company.
2. Q: Why choose LLY PACK?
1). 22 Years of Specialization in Corrugated Industry Solutions that delight
2). Over 3500+ successful installation corrugated cardboard production line
3). Strict inspection before delivery
4). The unique company who drafts the latest version of national industry standard for corrugated machines in China
2. Q: Why choose LLY PACK?
1). 22 Years of Specialization in Corrugated Industry Solutions that delight
2). Over 3500+ successful installation corrugated cardboard production line
3). Strict inspection before delivery
4). The unique company who drafts the latest version of national industry standard for corrugated machines in China
5). We have all kinds of corrugated machines and spare parts, which can reduce sourcing time for you.
3. Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, Facebook, Linkin, Whatsapp, Instangram.
3. Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.
TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, Facebook, Linkin, Whatsapp, Instangram.
4. Q:Where is your products being exported before?
Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
Our corrugated machine and corrugating roll have been exporting to over 40 countries, including: Vietnam, Thailand, Myanmar,Philippine, Malaysia, Indonesia, India, Egypt, Emirate, Bahrain, Saudi Arabic, Israel, Russia, Lithuania, Mexico, Brazil,Argentina, Venezuela, Honduras, Korea and etc.
