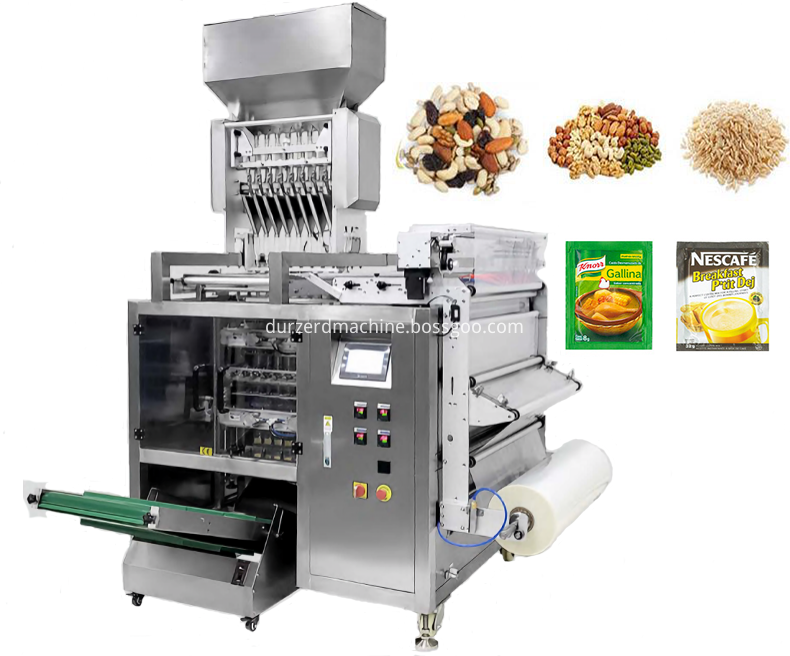

Multi Lane Automatic Sachet Granule Packing Machine
| Min. Order: | 1 Set/Sets |
|---|
| Packaging: | Wooden case |
|---|---|
| Brand: | Durzerd |
| Transportation: | Ocean,Land |
| Place of Origin: | China |
| Port: | SHANGHAI PORT |
Product Description
Brief Introduction:
Multi Lane Sachets Stick Packing Machine can work up to 16 lanes at the same time. The output has been greatly improved.
Automatically measuring volume, making bags, filling, sealing, cutting, printing the lot number and cutting easy tearing notches, finished product conveying. Multi lane small sachet packing machine is suitable for granule products, such as granule puffed, chips, grains, dried fruits, beans, nuts, salt, sugar, tea, seeds, pepper, spice, etc. The bag type can be 3-side sealing, 4-side sealing and back sealing. It can be combined with elevators feeders or Automatic Vacuum Feeder and finished product conveyor to form a production line.
Features:
(1)Famous brand PLC control system, large touch screen, convenient to operate;
(2)Advanced design, high precision and fast speed;
(3)No film alarm, saving Materials and no wasting film;
(4)Photoelectric tracking system for precise bag length and position of film
(5)Machine case is made of 304 stainless steel, which is more good for food.
APPLICATION:
Suit for granule: salt, sugar, washing powder, spice. So this machine can also be customized as sugar packing machine and candy packaging machine, etc.
Detailed description
Technical Parameters
| Model | ZD280BK | ZD480K | ZD280K |
| Filling type | Granule | Granule | Granule |
| Capacity | Max 50 cycle/min | Max 50 cycle/min | Max 50 cycle/min |
| Lane number | 2-6 Lane | 2-6 Lane | 2-4 Lane |
| Measuring method | Volumetric cup/Weigher | Volumetric cup/Weigher | Volumetric cup/Weigher |
| Bags size | Length: 50--180mm Width:17--65mm | Length: 45--120mm Width:40--120mm | Length: 50--180mm Width:25--70mm |
| Film width | Max.280 mm | Max.480 mm | Max.280 mm |
| Film thickness | 0.07--0.10mm | 0.07--0.10mm | 0.07--0.10mm |
| Sealing type | back sealing /stick bag | 4 sides sealing bag | 3 sides sealing bag |
| Cutting type | Straight/Zig zag/Round/ Die cutting | Straight/Zig zag/Continuous cutting | Straight/Zig zag/Round/ Die cutting |
| Air Compressor | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min | 0.8 MPA 0.8m3/min |
| Power source | 3.5KW | 2.8KW | 3.5KW |
| Dimension | L1385 x W918x H2005mm | L950 x W1470x H1750mm | L1385xW918x H2005mm |
| Weight | 350kg | 300kg | 350kg |
DURZERD PACKAGING MACHINERY CO., LTD.
- 1
- 2
- 3
- 4
- 5
Durzerd machinery is a company with manufacturing and self-supporting import and export rights for more than 25 years, our company has experience in exporting all machine items to all over the worlds ,We provide worldwide customers with a full line of reliable products. we are a company devotes to bag making machines,automatic packaging machines, secondary Packing Machine ,heavy packaging robot palletizer line and technology development in one of the high-tech enterprise. The company has a perennial engaged in the field of industrial high-tech product development of high-quality professional and technical R&D team, strong technical force, has a number of experienced software and hardware engineers, professional product development designer.
Our Products
Automatic packing machine: sachets packing machine, stick packing machine, vertical packing machine, high speed vertical packing machine, weighing machine; rotary premade bag packing machine, mini doypack machine, vacuum packing machine, autimatic 25kg ~ 50kg kraft paper bag packing machine wovenn bag packing machine, etc.
Robot palletizer line: such as woven bag palletizer line, carton box palletizer line, etc.
Secondary packing line: bag in bag secondary packing machine, bag in carton line, box in carton line, etc.
Our promise
Backed by modern manufacturing facilities, state-of-the-art technology, independent intellectual property, CE certificate, ISO 9001 certification, we offer you world-class products with advanced features, competitive price, reliable quality and on time delivery.We provide various services of quotation, quality inspection, insurance, customs declaration, shipping, handling / processing of export documentation and other services according to your needs. We have engineer teams for after sale service in 24 hours.
Contact us
Discuss your ideas with our Overseas Sources Center. Email or fax us today to see what we can provide. Welcome friends from all walks of life to come to visit, guidance and business negotiation.
Company Info
- Company Name: DURZERD PACKAGING MACHINERY CO., LTD.
- Product/Service: Vertical Form Fill Seal Machine , Pouch Packing Machine , Sachets Packing Machine , Robot Palletizer Line , Secondary Packaging Machine , Auto Bagging Machine
- Capital (Million US $): 5000,000RMB
- Year Established: 1996
- Contact Person: Mr. Jack
- Tel: 86-15955114991
